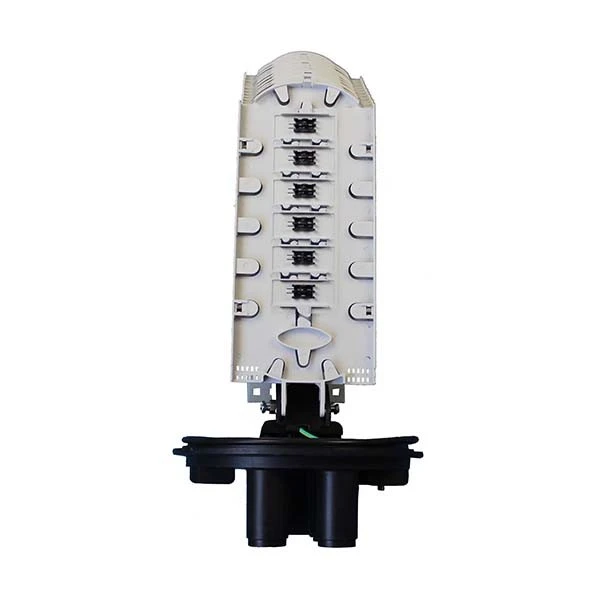

Fiber Dome Closure

Model: LPSC-222

The optic closure is commonly used in optical fiber network and responsible to provide a secured space to accommodate optic fiber cable inside, protection from outside risks of damaging the optic fiber, well organize the fiber route to keep optic fiber in safety way of installation, and also the mechanism to store the remains of optical fiber cable which need to be storage properly, these are common scenarios of optic closure works and the main purpose of it.

However, in some extreme cases of optic fiber network the optic cable needs to be high fiber count cable, which has two forms of optic fiber cable, the standard fiber bundle structure is capable around 432 - 864 cores of optic fiber in the optic fiber cable and alternative is ribboned fiber structure which can up to 1728 cores per one optic fiber cable, all of such high fiber counts cable is not possible to use standard optic closure as most optic closure are under 288 cores, the special design of optic closure for this application is need and our optic closure model LPSC-222 is one of the solutions.

Though the high fiber count cable needs lots of space to be installed inside of optic closure and needs enough mechanism to accommodate the splice protection sleeve on the splice tray system, the solution is to redesign the splice tray and enlarge the capacity from standard 24 cores per tray to 72 cores, the LPSC-222 is cable to install max 12 pieces of this 72 cores splice tray and effect the total capacity of splicing is 864 cores.

This optic closure are designed for different environments of installation, can be direct buried, manhole/underground, wall and pole mount, has advantages of easy installation and high reliability.

1. Telecommunications networks
2. Cable television
3. Internet service provider

By pallet or single carton

OEM/Private label design
