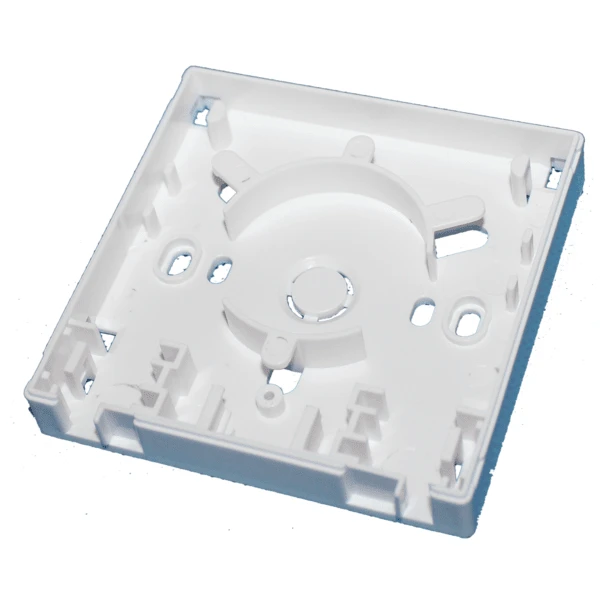

Fiber Socket Wall Mount
Model No.: FTTH-001
Economic designed for use in residential and business environments for the termination of up to 2 fibers.
It can hold max. 2 pcs of SC adapters. The unit can be quickly installed within an office or house.
Description
|
Model No. |
Classification |
|
FTTH-001 |
Fiber Socket Wall Mount (Fiber Distruibution Box) |
Wall outlet FTTH-001 is a economic designed for use in residential and business environments for the termination of up to 2 fibers.
It can hold max. 2 pcs of SC adapters. The unit can be quickly installed within an office or house.
FTTH-001 can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specifications
|
Item |
Specifications |
|
External dimension (L x W x H, mm) |
86 x 86 x 19 mm |
|
Material of housing |
ABS |
|
Number of distruibution cable ports |
2 |
|
Number of drop cable ports |
2 |
|
Max. splice capacity (single fiber) |
2 splices |
|
Adaptor loading |
2 SC simlex adaptors |
Standards Comply
|
ITU-T L.201 |
Performance requirements for passive optical nodes: Sealed Closures for Outdoor Environments |
|
Telcordia GR-771-CORE |
Generic requirements for fiber optic splice closures |
|
UL 94 |
Standard for tests for flammability of plastic materials for parts in devices and appliances. |
|
IEC-60529 |
Degrees of protection provided by enclosures (IP Code) |
Applications Environment
|
Item |
Value |
|
Operation temperature |
-40 ºC～+65 ºC |
|
Installation temperature |
-10 ºC～+50 ºC |
|
Storage temperature |
-45 ºC～+65 ºC |
|
Relative humidity |
5%～95% |
Fiber Distrubution Box Installation Process
Preparation of Pre-operation
- Check the terminal box type, cable item, and all components before installation
- Keep all components dry and clean for installation.
- Keep working environment clean (dry and no dust) and flat for installation.
- Standard instruments and tools should be used during installing.
Installatin Instruction

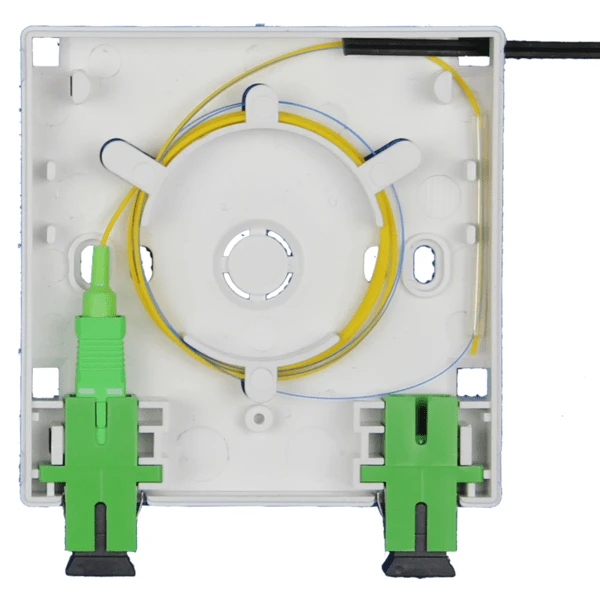

- Open the wall outlet termination box, install adaptors into adaptor holders.
- Connect 0.9mm white pigtail with adaptor, coiling the pigtail along routing slot; guide the yellow fiber cable into box.
- Route the fibers which come out from cable along routing slot, and splice fibers with 0.9mm pigtails.
- Connect the yellow pigtail with adaptor, guiding out from the box, installation completes.
