Fiber Optic Dome Closure

Model: LPSC-318
The optic closures or so called fiber optic splice closure have long years to be used in fiber optic network and act as a role of safety shelter to provide optic fiber cable a secured place to process, splice and manage, and the design is various as the optic closure might work in different environments, conditions and extra requirements in some special scenarios.

Send Inquiry

Model: LPSC-318

The optic closures or so called fiber optic splice closure have long years to be used in fiber optic network and act as a role of safety shelter to provide optic fiber cable a secured place to process, splice and manage, and the design is various as the optic closure might work in different environments, conditions and extra requirements in some special scenarios.

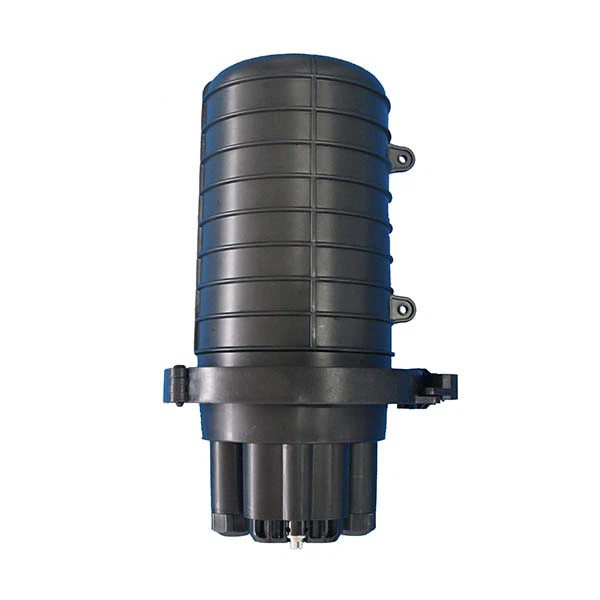

LPSC-318 is dome shaped optic closure which is specialized to be installed in limited space, the compact design is unique than traditional dome closure and capable to be installed in handhole, the cable seal is by mechanical sealing mechanism, as a multi-functional purpose for optical cable splice, management, distribution and protection.

This optic closure can be used for access or branch between fiber optical cables with 1 large round port and 4 small round ports, the different configuration grommets can be chosen for drop cable in different diameters, and this optic closure is equipped with max 4 pieces of splice tray with 24 cores splice capacity per tray, the total splice capacity is 96 cores.

As working in harsh environments, this closure is made by verified engineering plastic for lifespan 25 years, and durable from different effects of climate, stress, and handling, this optic closure can be deployed for direct buried, wall mount and areal environments, this LPSC-318 is capable for wide application, excellent sealing performance and easy for installation.

Product Specification

Outside dimension (H x D, mm)	345x230
Sealing type	Mechanical sealing
Number of inlet ports	6 optical entrance ports
Diameter of optical loop cable (mm)	Φ8~Φ20
Splicing capacity per splice tray	24
Max. number of trays	4
Max. splice capacity (single fusion)	96
Material	MPP
IP Rank	IP68

Product Configuration

No.	Name	Q’ty
1	Splice tray	4
2	Splice tray transparent cover	4
3	Slot for splice protective sleeve	12
4	Splice tray holder	1
5	Velcro	1
6	Fiber storage plate	1
7	CSM fastener	4
8	Hex screw	2
9	Seal fitting	1
10	Base	1
