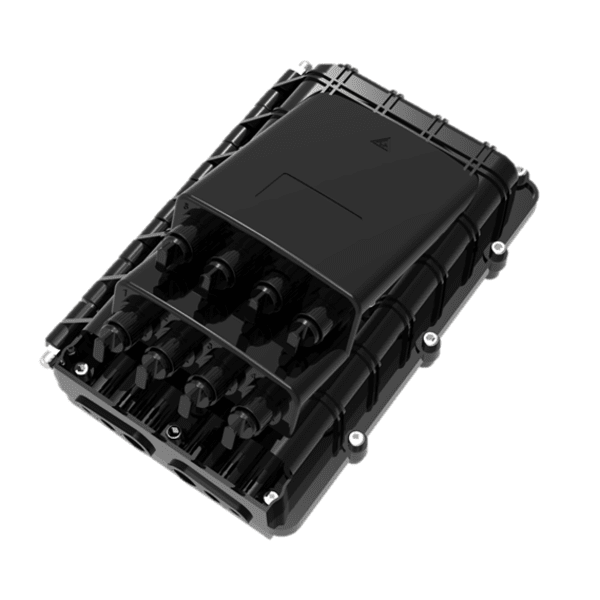

IP68 Terminal Closure Screw Seal

Model No.: LPTC-14
LPTC-14 is equipped with screw sealing and has a waterproof rating of IP68. It is very suitable for underground installation, and the maximum splice capacity can be up to 96 fibers.

Send Inquiry

Description

Model No.	Classification
LPTC-14	IP68 Terminal Closure Screw Seal (waterproof connector)

LPTC-14 is equipped with screw sealing and has a waterproof rating of IP68. It is very suitable for underground installation, and the maximum splice capacity can be up to 96 fibers. Avaliable for re-entry and reuse, capable for loading 1:2, 1:4, 1:8 PLC splitter.

Specifications

Item	Specifications
External dimension (mm)	297 x 202 x 142 mm
Material of housing	MPP
UV radiation (Hour)	720 (ASTM G155)
Sealing type	Mechanical
Number of ports	2 ports for cable with max diameter 20mm. 2 ports for cable with max diameter 16mm. 2 ports for cable with max diameter 13mm. 16 drop cable ports.
Splicing capacity per tray	96 (Splice tray type and quantity can be optional as customer's request)
Adaptor loading	8 pcs waterproof SC simplex adaptor
IP grade	68
Radius of curvature	> 30mm
Working temperature (℃)	-40 to +65℃
Insulation resistance	≥2X104MΩ

Characteristics

Installation and reentry with a minimum of tools

Easy to be opened or closed

Re-enterable and reusable

All hardware are captived

Capable for loading 1:2, 1:4, 1:8 PLC splitter

Tap Input, Tap Through (Output) and Drops connected are included

Closure can be flash tested

Protection class: IP68

RoHS compliance

Applications Environment

Item	Value
Operation temperature	-40 ºC～+65 ºC
Installation temperature	-10 ºC～+50 ºC
Storage temperature	-45 ºC～+65 ºC
Relative humidity	5%～95%

Optional Accessories

No.	Name	Picture	Quantity
1	Earthing device		1 pc
2	Air valve		1 pc
3	Pole-mounting kit		1 set (2 pcs)
4	Aerial-mounting kit		1 set (2 pcs)
5	Wall-mounting kit		1 set
