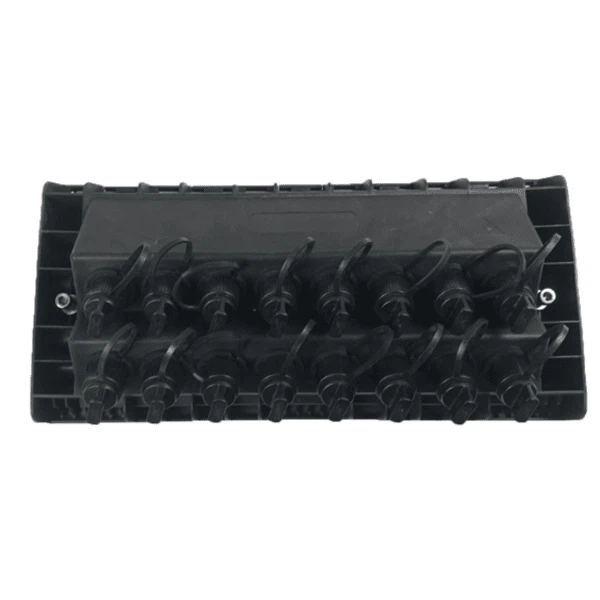

Fiber Access Terminal Closure
Model No.: LPTC-06
LPTC-06 can be connected and branched out. It has 8 cable entries and 16pcs connectors, which is suitable for buried, wall-mounting and aerial. .
Description
|
Model No. |
Classification |
|
LPTC-06 |
Fiber Access Terminal Closure (waterproof connector) |
LPTC-06 fiber splice terminal closure is designed as a multi-functional equipment for optical cable splice which can be connected and branched out. It has 8 cable entries and is suitable for buried, wall-mounting and aerial. This product has wide adaptability, good sealing performance and easy to be installed. The selected high strength engineering plastic material assure mechanical strength and superior protection from harsh environment, like aging, corrosion, temperature. With our relentless efforts in designing, developing and manufacturing high quality Splice closure products, you can rest assured that our products are your best option.
Characteristics
Installation and reentry with a minimum of tools
Easy to be opened or closed
Re-enterable and reusable
All hardware are captived
Capable for loading 1:2, 1:4, 1:8, 1:16 PLC splitter
Tap Input, Tap Through (Output) and Drops connected are included
Closure can be flash tested
RoHS compliance
Specifications
|
Item |
Specifications |
|
External dimension (mm) |
347 x 156 x 107 mm |
|
Material of housing |
MPP |
|
UV radiation (Hour) |
720 (ASTM G155) |
|
Sealing type |
Mechanical |
|
Number of ports |
4 ports for cable with max diameter 16mm. 4 ports for cable with max diameter 13mm. |
| Splice Capacity | 48F |
|
Adaptor loading |
16 pcs waterproof SC simplex adaptor |
|
PLC splitter |
1x2, 1x4, 1x8, 1x16 PLC splitter |
|
Radius of curvature |
> 30mm |
|
Working temperature (℃) |
-40 to +65℃ |
|
Insulation resistance |
≥2X104MΩ |
Standards Comply
|
ITU-T L.201 |
Performance requirements for passive optical nodes: Sealed Closures for Outdoor Environments |
|
Telcordia GR-771-CORE |
Generic requirements for fiber optic splice closures |
|
UL 94 |
Standard for tests for flammability of plastic materials for parts in devices and appliances. |
|
IEC-60529 |
Degrees of protection provided by enclosures (IP Code) |
Optical Splice Tray
|
Splice tray picture |
Capacity |
|
|
24F (Single fiber, 2 layers) |
